Description

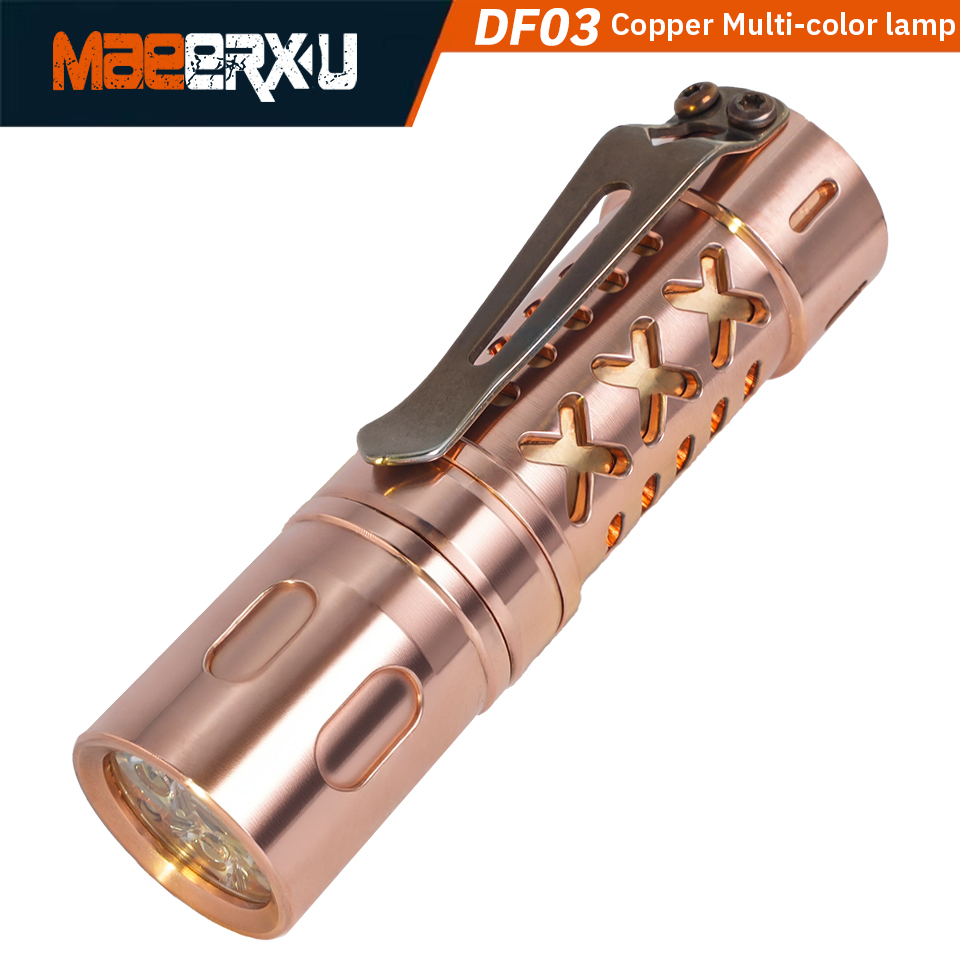

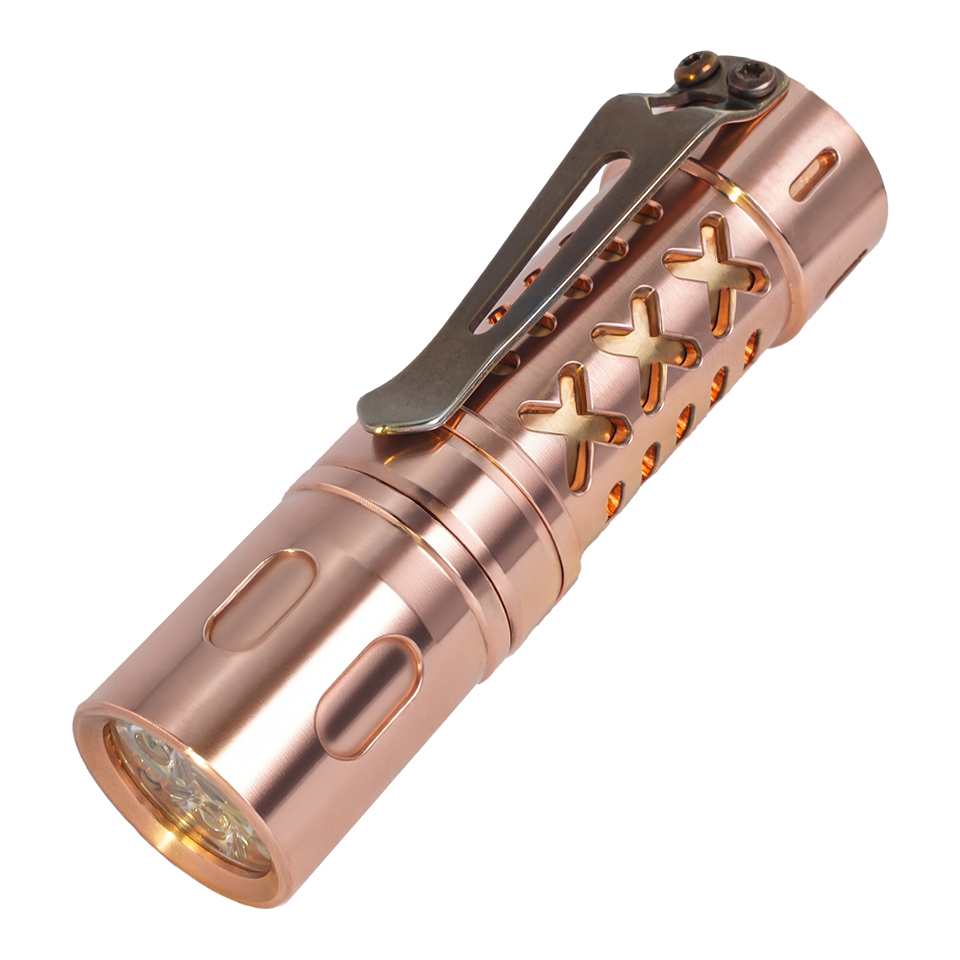

Model: DF03 -Copper-14500

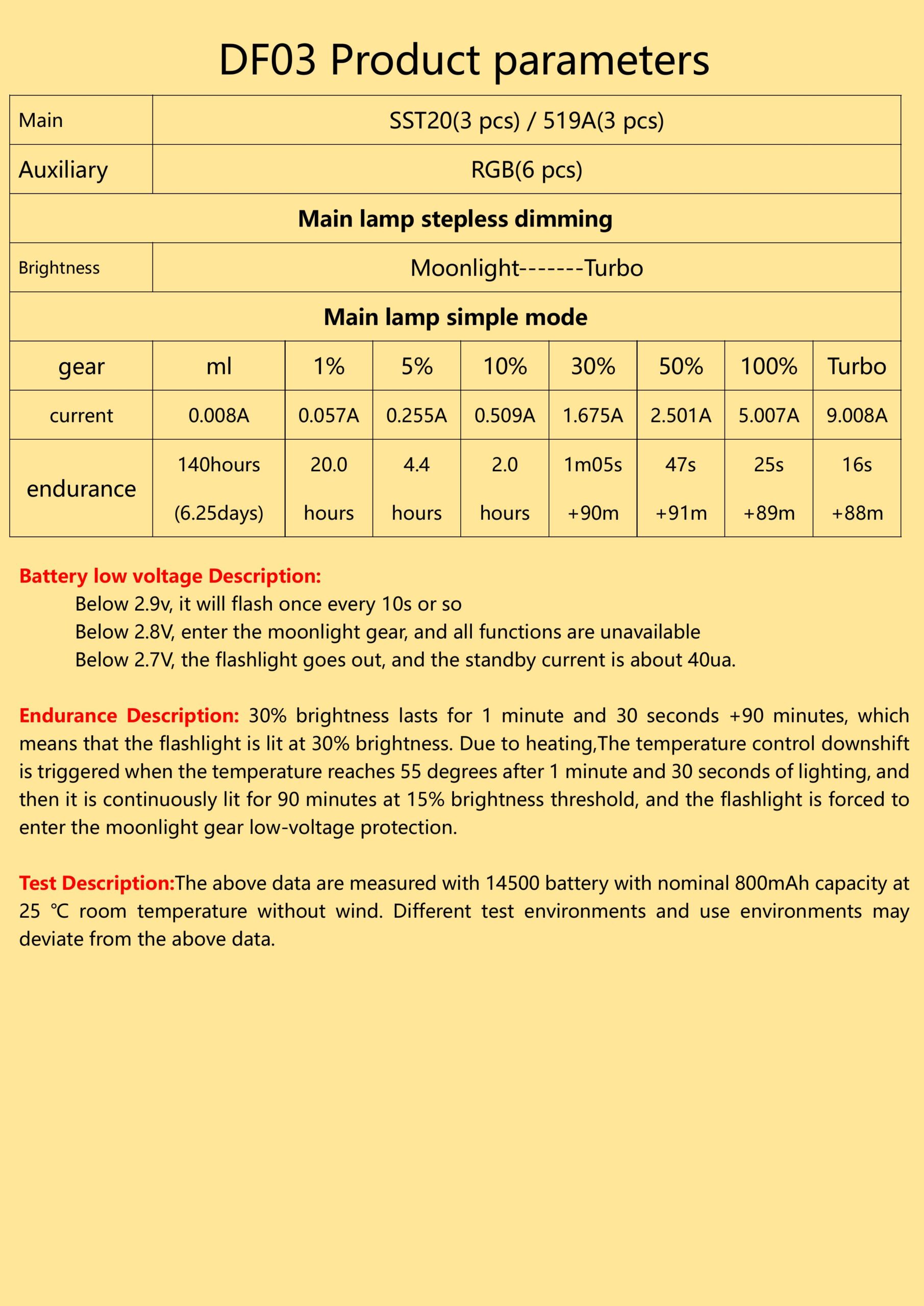

Parameter description
●Material:Purple Copper
●Surface treatment: purple copper natural color

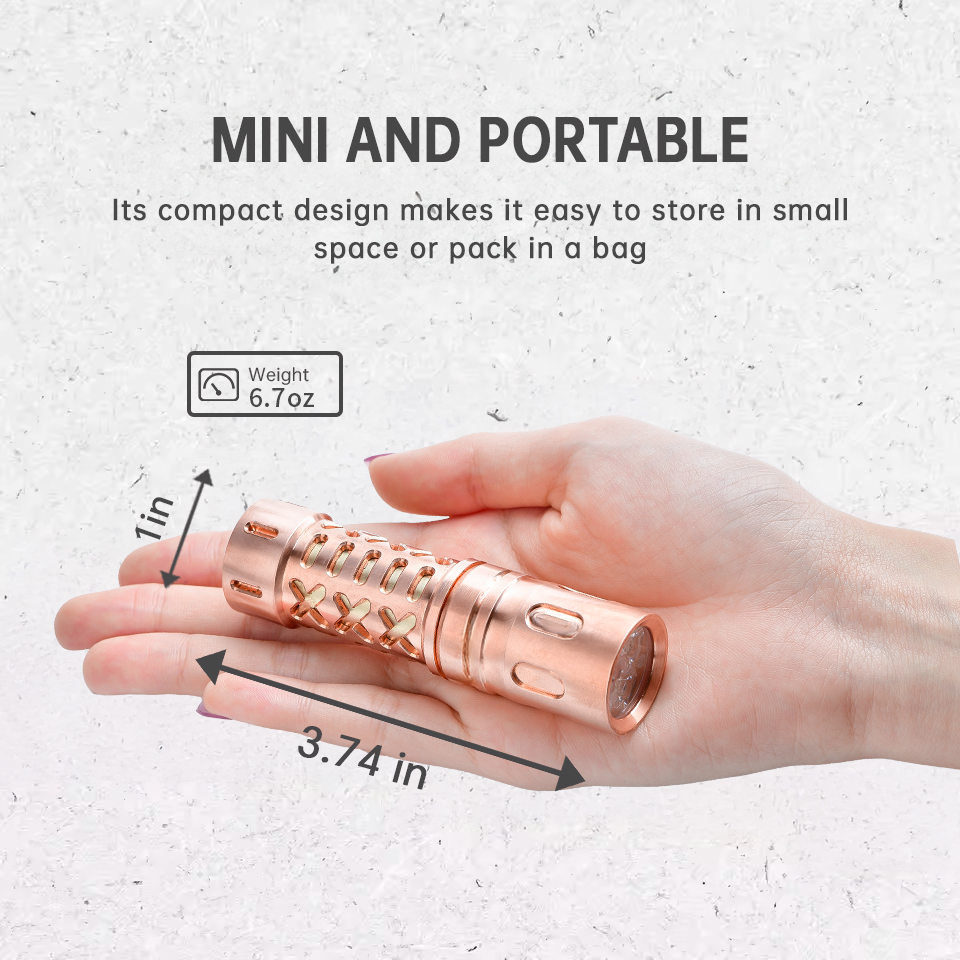

●Product Size:Outside Diameter 1 in*Length 3.71in
●Weight: 6.7oz(without battery)(7.37oz with battery)

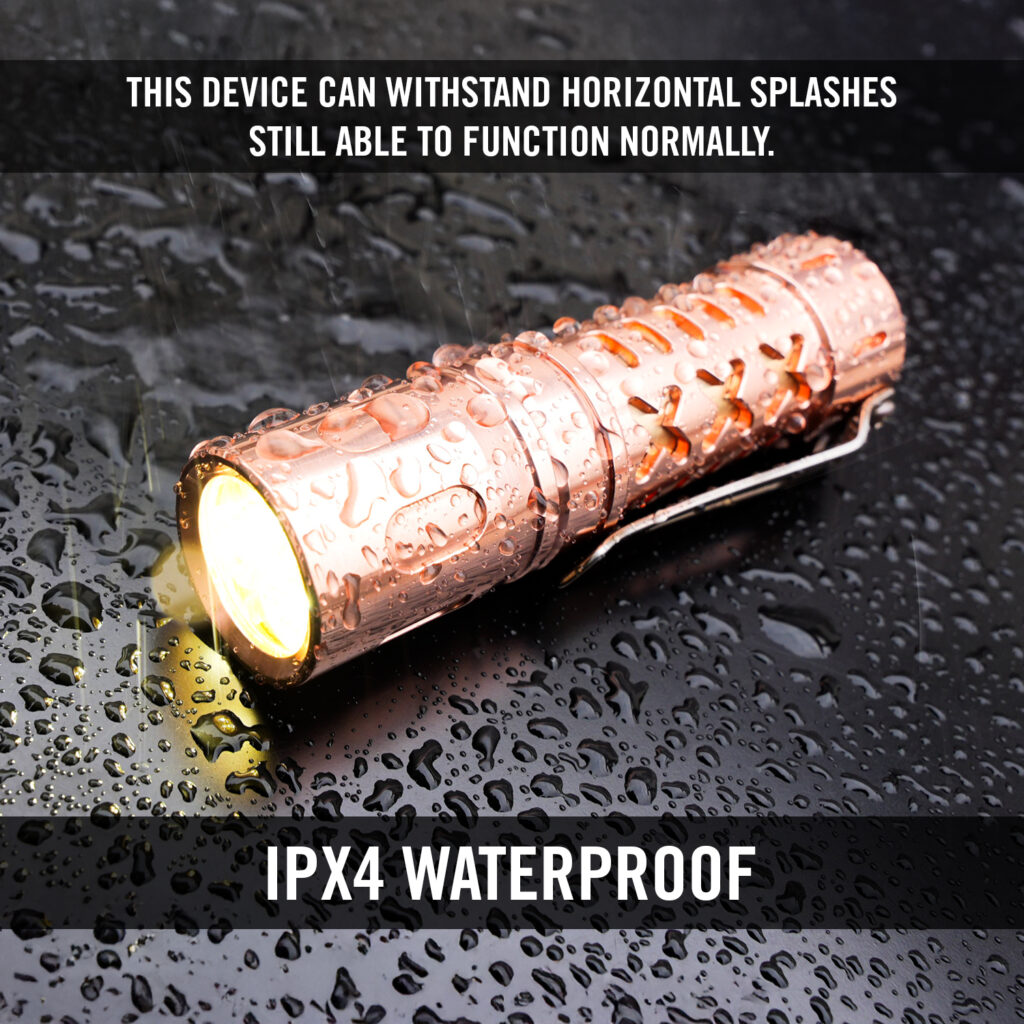

●Waterproof performance: IPX4 waterproof
●Red copper substrate: Electro-thermal separation of copper substrate can make the heat dissipation faster

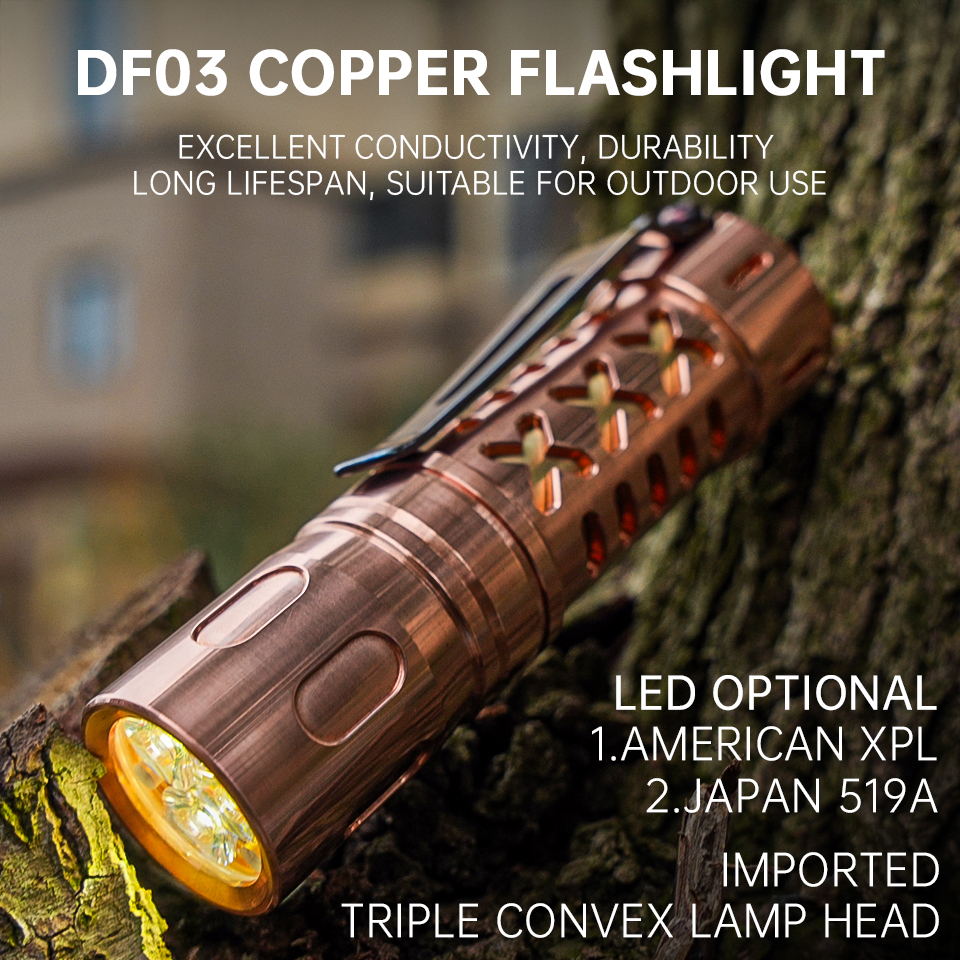

●LED model: 3*SS-T20 or 3*519A or 3*XPL HI, multiple color temperature optional

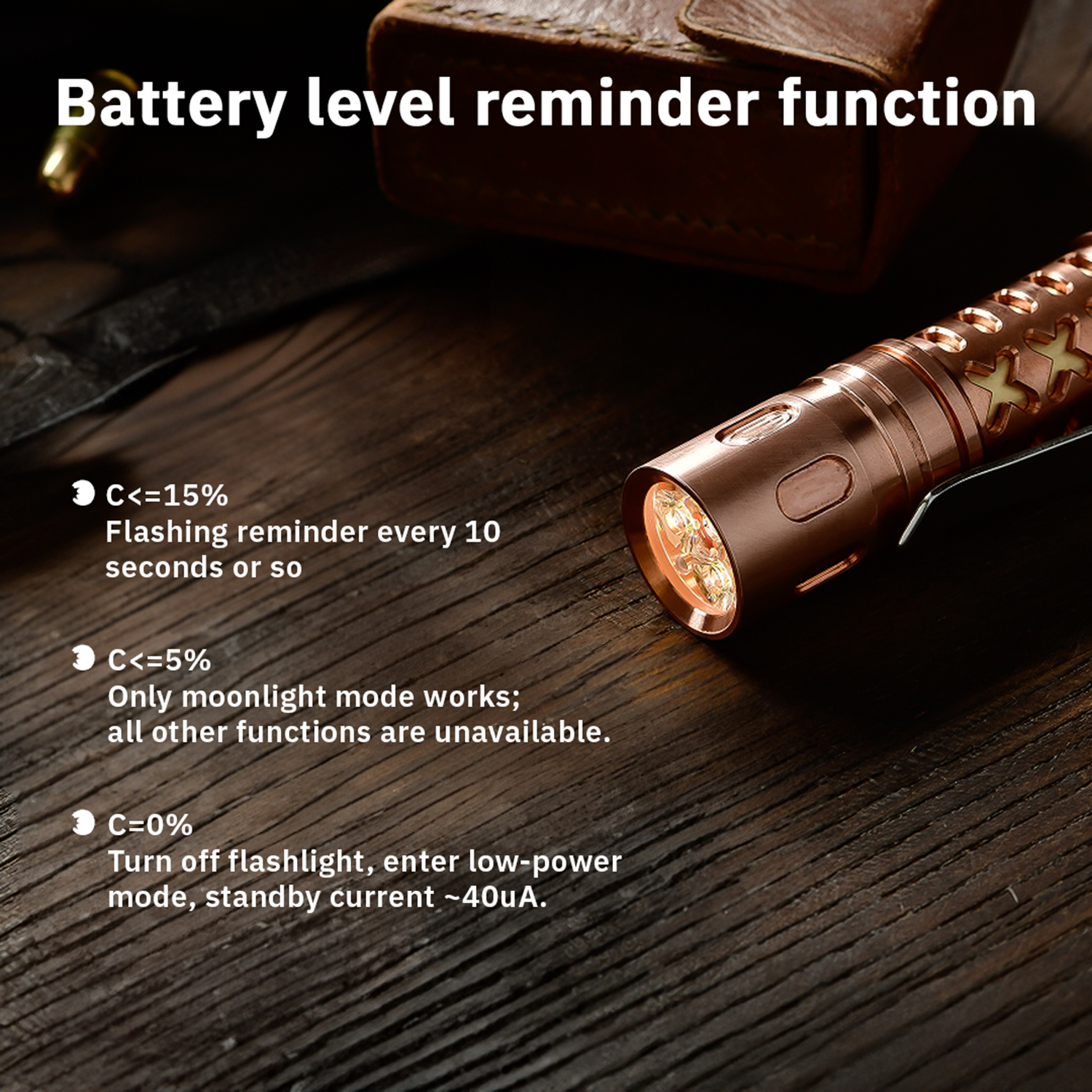

Battery model: 1*14500 lithium battery (drive voltage 3V-4.3V), not high voltage drive flashlight.
●Convex lens: imported high reflectivity 3 * LED convex lens
●Circuit: low voltage alert/reverse polarity protection/with memory (extremely playable), you can set your favorite mode at will.

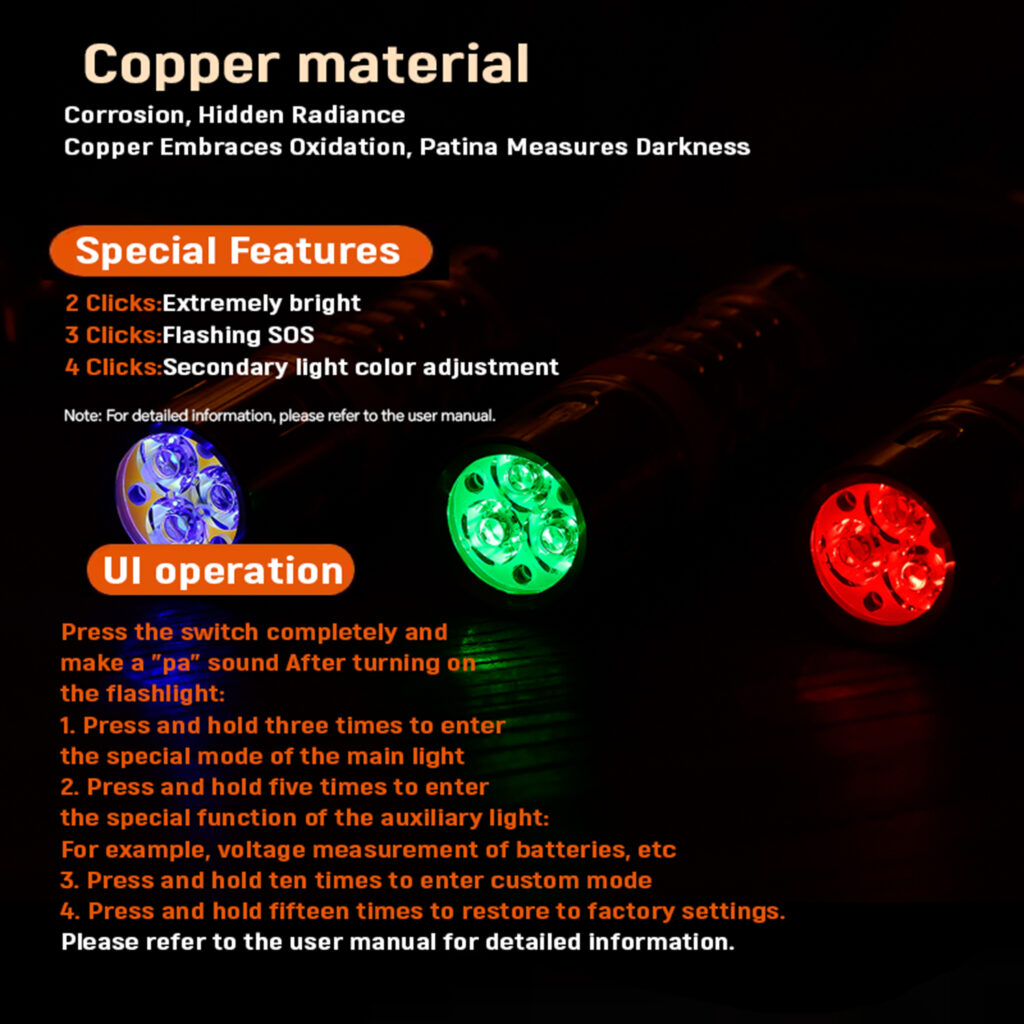

●Gear mode: full press switch on/off, half press switch gear (main light 16 modes any switch, the specific operating logic check the operating instructions)

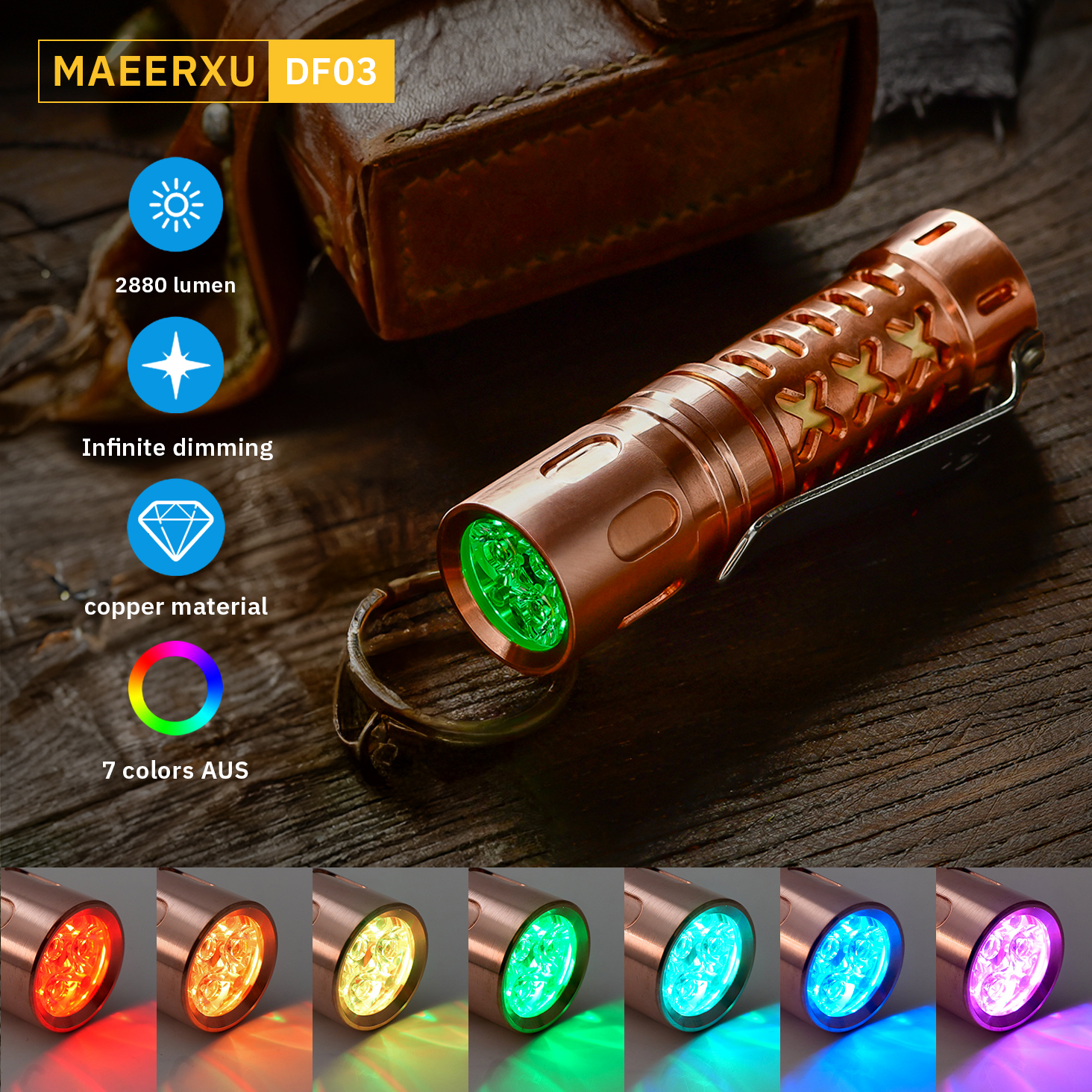

●Auxiliary lamp: seven colors can flow in the downward and reverse direction of the auxiliary lamp, you can also choose any one of the seven colors of memory as auxiliary lamp (specific operation logic see the operation manual)
●Full linear constant current, no call sound, no strobe
●Switch mode: tail mechanical power-off switch
●Package contains: 1 * flashlight (excluding batteries and charging), 1 * operating instructions 1 * stainless steel clip, 2 * M3.0 stainless steel screws
New UI operation video:https://www.youtube.com/shorts/wcg7PLnjnMY
![](https://www.maeerxu.net/wp-content/uploads/2022/04/20_副本.jpg)
![](https://www.maeerxu.net/wp-content/uploads/2022/03/充电说明.jpg)
![](https://www.maeerxu.net/wp-content/uploads/2020/10/DSC3454_副本.jpg)
The working power supply for the 14,500 models is 1*14500 lithium battery (2.7-4.2V)
![](https://www.maeerxu.net/wp-content/uploads/2020/10/X2.jpg)
![](https://www.maeerxu.net/wp-content/uploads/2020/10/X4.jpg)
![](https://www.maeerxu.net/wp-content/uploads/2020/10/X8-1a.jpg)

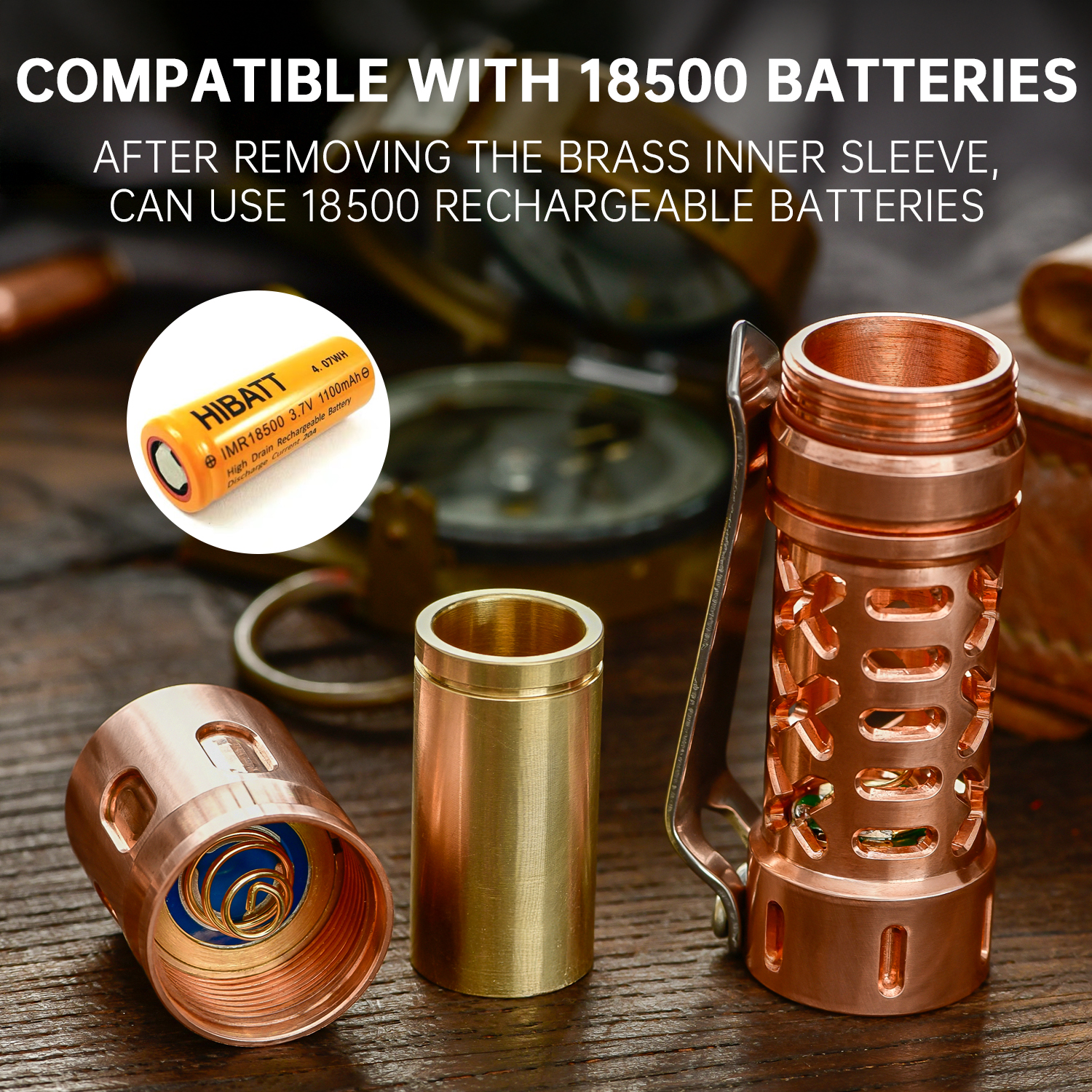

14500 models of flashlights can use 18500 lithium batteries after removing the inner sleeve of the barrel.
![](https://www.maeerxu.net/wp-content/uploads/2020/10/X12.jpg)
![](https://www.maeerxu.net/wp-content/uploads/2020/10/DSC3442_副本.jpg)
![](https://www.maeerxu.net/wp-content/uploads/2022/10/三灯照射-300x169.png)
![](https://www.maeerxu.net/wp-content/uploads/2022/04/DF03-紫铜-1024x741.png)
![](https://www.maeerxu.net/wp-content/uploads/2021/01/f60353542dd3b3e46552cfa6ab11e2b-1024x723.png)
Sean Gallagher (verified owner) –
Really nice light. Fits comfortably in the pocket and has really nice illumination. Love the accessory lights. Suggest getting the charging combo for easy charging.
maeerxu –
Thank you Sean. Hope you could have fun with our product. And your suggestion for getting the charging combo is very useful for the new user.
